FRP resin tank

Released Date: Mar 01,2016 Article Source: Yuanlai Water Treatment

1. In the water treatment system, the tank is used to fill fillers. The water supply reacts with the fillers and serves as a container for holding water. It needs to have a certain pressure-bearing capacity. Materials include carbon steel, stainless steel, plastic, fiberglass reinforced plastic, etc. The selection is based on the water flow rate and exchange capacity required by the customer. 1. Carbon steel tank: Different types of steel plates, rubber-lined and plastic-lined. 2. Stainless steel tanks: 304, 316, 316L, rubber-lined, plastic-lined. 3. Plastic cans: Acrylic glass, PP plastic, PE plastic. 4. FRP tanks: hand-laid inner tanks, PE inner tanks. Ii. FRP Tank Series: HY Small Tank Series (Diameter 8 "-16", civil series) Inner lining: PE plastic blow-molded inner liner formed

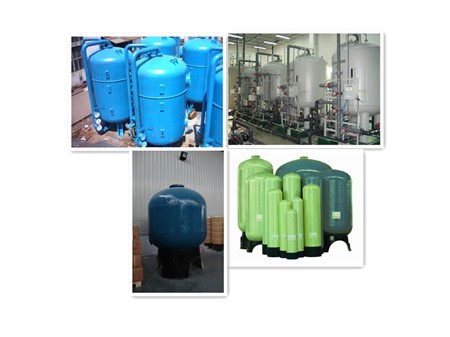

　　　I. Tank Body

　　It is used to fill fillers in water treatment systems, where water supply reacts with fillers and serves as a container for holding water.

　　It needs to have a certain pressure-bearing capacity. Materials include carbon steel, stainless steel, plastic, fiberglass reinforced plastic, etc.

　　The selection is based on the water flow rate and exchange capacity required by the customer.

　　1Carbon steel tank Different types of steel plates, rubber-lined and plastic-lined.

　　2Stainless steel tank304,316,316LRubber-lined, plastic-lined.

　　3Plastic cans Organic glassPPPlasticPEPlastic.

　　4FRP tank: Hand-laid inner linerPEInner liner.

Parameter

　　Ii. FRP Tank Series

　　HYSmall can series (diameter8"-16"Civilian series

　　Inner liningPEThe inner liner is formed by plastic blow molding, seamless and leak-proof

　　Shell: High-performance epoxy resin and glass fiber winding

　　Can mouthPPOMaterial

　　BasePPMaterial

　　Iii. FRP Tank Series

　　HYLarge tank series (diameter18"-63"Commercial and industrial series)

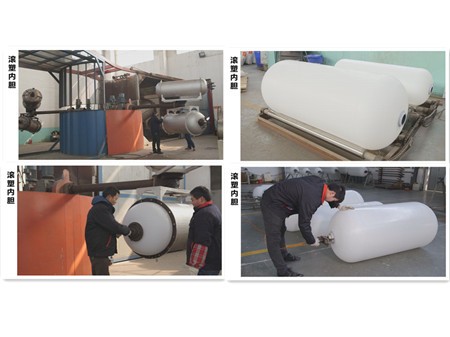

　　Inner liningPEThe plastic rotational molding inner liner is formed, seamless and leak-proof

　　Shell: High-performance epoxy resin and glass fiber winding

　　Can mouth4"The threaded opening isPPOMaterial

　　6"The flange is made of aluminum alloy

　　Base: Fiberglass reinforced plastic material

　　The height from the ground to the upper opening is more commonly used in China

　　HY-HSeries

　　The series designed with the clear height of the inner tank as the height of the tank body is more commonly used abroad

　　Iv. FRP Tank Series

　　HYHand lay-up series (diameter21"-83"Commercial and Industrial Series

　　Inner lining: The inner liner of the FRP tank is made by hand lay-up of resin and fiberglass cloth

　　Shell: Polyester resin and glass fiber winding

　　Can mouth4"Threaded port

　　6"FlangeSMCMaterial

　　Base: Fiberglass reinforced plastic material

　　The height from the ground to the upper opening is more commonly used in China

　　HY-DSeries

　　PEA series with an inner liner and a discharge port formed in one piece

Parameter

　　V. Dimensions of FRP Tanks

　　1Inchesinch)=25.4Millimetermm)

　　For example2169=530mm*1750mm

　　21*25.4=533.4

　　69*25.4=1752.6

　　Vi. Temperature of FRP Tank

　　Operating temperature1-490C(34-1200F)

　　Low storage and transportation temperature-270C(-170F)

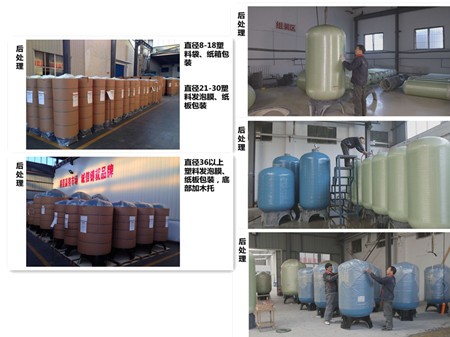

　　　Vii. Factory Testing of FRP

　　Work pressure

　　150PSI=10.5Bar=1.05Mpa=10.5kgf/cm2

　　100PSI=7Bar=0.7Mpa=7kgf/cm2

　　Blasting pressure test600PSI=42BarMaintain15seconds

　　Coefficient4:1

　　Static pressure test1.58MpaMaintain15min

　　Fatigue test0~150PSITest10Ten thousand times

　　High vacuum degree5"Hg=127mmHg=0.169Bar

Parameter
